A prognostic machine learning model for the prediction of pancreatic adenocarcinoma prognosis based on genomic expression of four cell-cycle associated hub genes
Original Article

A prognostic machine learning model for the prediction of pancreatic adenocarcinoma prognosis based on genomic expression of four cell-cycle associated hub genes

Yaman B. Ahmed1, Ayah N. Al-Bzour1^, Marwa T. Qaddoura1, Maen Ahmed2, Saif Aldeen Alryalat3

1Faculty of Medicine, Jordan University of Science and Technology, Irbid, Jordan; 2School of Engineering and Computer Science, Oakland University, Rochester, MI, USA; 3Department of Ophthalmology, The University of Jordan Hospital, Amman, Jordan

Contributions: (I) Conception and design: YB Ahmed, AN Al-Bzour, SA Alryalat; (II) Administrative support: YB Ahmed, AN Al-Bzour; (III) Provision of study materials or patients: YB Ahmed, AN Al-Bzour; (IV) Collection and assembly of data: YB Ahmed, AN Al-Bzour; (V) Data analysis and interpretation: YB Ahmed, AN Al-Bzour, SA Alryalat; (VI) Manuscript writing: All authors; (VII) Final approval of manuscript: All authors.

^ORCID: 0000-0001-8216-0400.

Correspondence to: Yaman B. Ahmed. Faculty of Medicine, Jordan University of Science and Technology, Irbid 22110, Jordan. Email: ybahmed180@med.just.edu.jo.

Background: We aimed to identify cell-cycle genes and investigate their expression in pancreatic adenocarcinoma (PAAD) and build a machine learning (ML) model to predict overall survival (OS) in patients with PAAD.

Methods: We used cBioportal database, an open-source cancer genomic database, to download the data. Survival-associated genes were identified using the GEPIA2 database. These genes were then analyzed for protein-protein interaction (PPI) enrichment. The identified hub genes were then validated for overexpression in 346 PAAD patients. Kaplan-Meier plots were further performed to show the correlation between gene expression and OS. An ML ensemble was built for each hub gene and evaluated for accuracy and precision using mean accuracy estimate with 95% confidence interval (CI), and 10-fold cross-validation.

Results: Four cell cycle-associated genes including: TPX2, KIF20A, CCNB2, and NCAPH were identified after PPI analysis and differential expression. All genes were significantly overexpressed in PAAD, and the survival analysis showed that higher expression for all genes were associated with poorer prognosis in PAAD. The ML models predicted patients’ prognosis with accuracy ranging between mean estimate of 68–85%.

Conclusions: After recognizing different hub genes using cBioportal database, analysis and validation were administered to demonstrate that four hub genes were associated with cell cycle regulation in PAAD. The ML model accurately predicted PAAD prognosis based on the expression of these genes. Thus, they can be identified as prognostic signatures in PAAD, and aid in the development of cell cycle inhibitors targeting those genes.

Keywords: Pancreatic adenocarcinoma (PAAD); cell cycle inhibitors; machine learning (ML); genetic biomarkers; bioinformatic analysis

Received: 19 August 2022; Accepted: 11 January 2023; Published online: 20 April 2023.

doi: 10.21037/apc-22-6

Highlight box

Key findings:

• Four genes of cell cycle (TPX2, KIF20A, CCNB2, and NCAPH) were found to affect the prognosis of pancreatic adenocarcinoma (PAAD) patients poorly when overexpressed.

What is known and what is new?

• Higher levels of expression of certain hub genes can affect prognosis of pancreatic cancer and other types of cancer either by increasing or decreasing their survival rates. For example, MMP7 and ITGA2 were identified as hub genes that affect pancreatic cancer prognosis and diagnosis.

• Upon using machine learning technique characterized by high accuracy, we discovered that four hub genes regulating normal cell-cycle were over-expressed in pancreatic adenocarcinoma patients and associated with poor prognosis and overall survival.

What is the implication, and what should change now?

• Identification of these hub genes can greatly improve prognosis and survival of pancreatic adenocarcinoma patients by targeting them for the development of anti-mitotic therapy.


Pancreatic adenocarcinoma (PAAD) is one the most aggressive tumors ranking the seventh and third cause of cancer-related deaths worldwide and in the United States respectively. It arises from the epithelium of the pancreatic duct, accounting for more than 90% of pancreatic cancer diagnoses. Patients with PAAD present with a poor prognosis and 5-year survival rates are less than 5% (1). The diagnosis of PAAD remains a devastating process, as patients are often diagnosed at late stages with late presenting symptoms which contribute to high-lethality and aggressiveness of the tumor. The presentation of symptoms depends on the tumor’s location, but pain, weight loss, and jaundice are the most common symptoms (2).

The cornerstone of advanced PAAD treatment is cytotoxic chemotherapy, mainly gemcitabine monotherapy as a first-line therapy, or doublet and triplet combinations with other agents (3,4). However, this modality results in poor overall survival (OS) of less than 1 year (5,6). PAAD is characterized by an immunosuppressive environment, causing high resistance to treatment and fatality rate (7). Thus, studies are now directed to investigate the efficacy of drugs targeting genomic alterations in PAAD. Immunotherapy efficacy has shown controversial results in patients with PAAD, as the use of anti-programmed cell death protein-1 (anti-PD-1)/anti-programmed death-ligand 1 (anti-PD-L1) and anti-cytotoxic T lymphocyte-associated protein 4 (anti-CTLA4) did not reveal any activity of immune checkpoint inhibitors in advanced PAAD but showed efficiency in PD-1 blockade in PAAD patients with mismatch repair deficiency (8).

Cell cycle control is one of the most substantial processes to maintain normal tissue growth, and abnormal regulation of this process may promote cancer proliferation or inhibit apoptosis. Many genes have shown a regulatory function in cell cycle phases, however, overexpression of some genes was associated with increased proliferation and evasion of apoptosis (9). In PAAD, deregulation of cell cycle kinases has shown to be associated with its tumorigenicity, thus, genes associated with kinase pathway and show upregulation in PAAD can be used as a therapeutic target for the development of cell cycle kinase inhibitors (10).

As the early diagnosis of PAAD presents a core hardship that affects patients’ prognosis, the introduction of machine learning (ML)-based models has been proposed to facilitate PAAD diagnosis and increase patients’ prognosis. ML algorithms can be used to classify cancer patients into high and low-risk groups, which allows the study of the clinical significance across groups (11). These models work by encompassing several variables including gene expression profiles, histological parameters, and clinical variables in a complementary manner to act as training parameters to predict patients’ prognosis (12). The most common types of ML models used in cancer detection are artificial neural networks and decision trees (13,14), these models allow researchers to combine data from multiple sources and use them for prognosis prediction or tumor detection (15). To rate the accuracy of these models, several validation methods can be used, including the training-validation method, which splits the dataset into a training set to identify the molecular signature and a test set to rate the amount of misclassifications (16).

The implementation of ML models on gene expression profiles by the use of DNA microarrays can help predict patients’ clinical outcomes such as prognosis or tumor staging. Web-based databases for cancer genomics such as The Cancer Genome Atlas (TCGA) project represent an important advance to improve the knowledge and understanding of cancer and related genes, providing a large number of patients’ data to integrate them into bioinformatic analyses such as gene expression patients’ survival (17).

In this study, we aim to integrate the genomic expression of cell-cycle associated genes to build and evaluate an ML model to predict the prognosis in PAAD, and to investigate the expression of these genes in PAAD compared to normal tissue and the relation between their levels of expression with patients’ survival.


Data acquisition

A thorough search through genomic and transcriptomic databases was conducted using TCGA (https://www.cancer.gov/tcga) and cBioportal databases. The TCGA is a genomic program that contains over 20,000 primary cancer molecular, genomic, transcriptomic, and proteomic data on 33 cancer types with matched normal samples. This database was used to obtain clinical and expression data of PAAD patients from the Pan-Can project. The cBioportal is an open-source cancer genomic database developed at Memorial Sloan Kettering Cancer Center (MSK) (18,19). It consists of cancer genomic and clinical data from different projects, including the TCGA project. In this study, we selected and downloaded the data from cBioportal based on the following criteria: (I) samples of PAAD; (II) samples reporting the mRNA expression as z-scores relative to all samples; and (III) samples for the corresponding mRNA expression with data on OS status in months. Studies that reported mRNA expression without OS data or reported OS data without mRNA expression were excluded.

Gene Expression Profiling Interactive Analysis 2 (GEPIA2)

The GEPIA2 is a webserver for transcriptomic analysis that provides an interactive framework to analyze RNA sequencing expression of tumor samples from the TCGA project and normal tissue samples from the Genotype-Tissue Expression (GTEx) project (20). This database was used to carry out the significantly survival-associated gene analysis and validate their expression using the differential expressed genes (DEGs) tool in PAAD by analyzing the differences in the abundance of gene transcripts within mRNA sequence (transcriptome), which aid in the identification of potential biomarkers for multiple cancers and targeted therapies. The DEGs were analyzed using a |log2FC| cutoff value of 2 and q-value cutoff of 0.05 for PAAD tissue matched with normal tissue samples from TCGA and GTEx databases.

Protein-protein interaction (PPI)

The resulting survival-associated genes were analyzed using the Search Tool for the Retrieval of Interacting Genes/Proteins (STRING) database, which examines the significantly enriched genes for biological processes, cellular component, molecular function, and Kyoto Encyclopedia of Genes and Genomes (KEEG) pathways (21). PPI network was constructed for the resulting survival-associated genes from the GEPIA2 database for confidence network and a minimum interaction score of 0.90 representing the highest confidence and 1% high false discovery rate (FDR).

Survival analysis using Kaplan-Meier plotter

The Kaplan-Meier plotter is an online tool to assess the correlation between mRNA, miRNA, DNA, or protein expression of over 30,000 genes and the survival data of over 25,000 samples from 21 cancer types from different databases including the TCGA project, thus providing survival biomarkers for the cancer and gene of interest (22).We used this tool to assess the correlation between mRNA sequence expression of the previously chosen genes from GEPIA2, and the OS data of PAAD patients from the TCGA Pan-Can project, by splitting the mRNA expression samples of our proposed markers into two groups of low levels of expression and high levels of expression, then the two groups are compared using Kaplan-Meier survival plot and a hazard ratio (HR) with 95% confidence intervals and log-rank P values.

ML classification ensemble

To provide a diagnostic model for the chosen genetic markers, we built an ML classification ensemble, to predict the prognosis of PAAD and survival status. The obtained mRNA expression data of PAAD patients from the cBioportal database were used to construct the model, mRNA expression z-scores were set as feature variables, and the OS status was denoted as the target variable. The sample was randomly split into 80% training set and 20% testing set. Figure 1 illustrates data processing for the ML model.

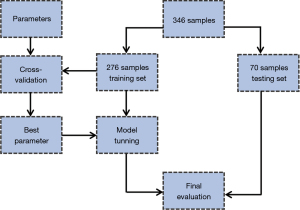

Figure 1 Data illustration for machine learning workflow and data processing.

The training set was fitted into a Random Forest Classifier (RFC) ensemble. The model’s performance was then evaluated using the mean bootstrap estimate with 95% confidence interval (CI). To avoid overfitting, we used a 10-fold cross-validation method, in which the model is trained using k−1 fold as the training data, and then the model is validated on the rest fold of the data. A cross-validation methodological illustration is shown in Figure 2. A cox proportional hazard (CPH) model was adjusted for the expression levels of the obtained genes in a univariate and multivariate fashions. The RFC model was built and evaluated using Scikit-learn (v1.0.2) package from Python (v3.9.7), and the CPH model was built using survival and finalfit packages from R language (23).

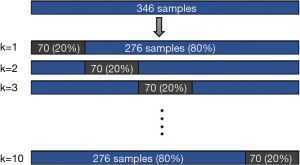

Figure 2 Illustration of the 10-fold cross-validation evaluation method. The training set is randomly split into k−1 folds, where (k=10), and the remaining fold is used as the validation set.

Ethical clearance

The study conformed to the provisions of the Declaration of Helsinki (as revised in 2013). This study did not require ethical approval. All the data used in this study were obtained from open databases (cBioportal) of de-identified individuals.


Sample characteristics

The cBioportal database identified 16 datasets on pancreatic cancers, with 3,592 patients (1,901 males, mean age =65.57 years) with PAAD. A total of 346 samples (314 males, mean age =64.71 years) from two datasets reported z-scores of mRNA expression for the proposed genes with their corresponding OS data and were entered for further analysis. Treatment modalities for these patients included 102 patients on gemcitabine, 45 on radiation therapy and 51 on other chemotherapeutic agents.

Candidate gene selection

A total of 500 significant survival-associated genes in PAAD were identified from the GEPIA2 database, which were further analyzed for PPI interaction using the STRING database. The PPI network analysis resulted in 19 clustered genes, which were further analyzed for differential expression in PAAD and normal tissue. After the differential expression analysis, we identified a total of 4 genes that were both significantly upregulated and associated with PAAD survival. These genes included: TPX2, KIF20A, CCNB2, and NCAPH. All these genes showed significant overexpression in PAAD compared to normal tissue: TPX2 [log2(TPM +1) median: 3.4 vs. 0.12], KIF20A [log2(TPM +1) median: 2.34 vs. 0.1], CCNB2 [log2(TPM +1) median: 3.3 vs. 0.3], and NCAPH [log2(TPM +1) median: 2.32 vs. 0.14]. Boxplots for genes’ expression between PAAD and normal tissue are shown in Figure 3.

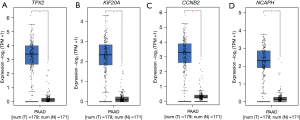

Figure 3 Box-plots for genes expression, where (blue) represents PAAD tissue and (grey) normal tissue. (A) TPX2 expression between PAAD (blue) and normal tissue (grey); (B) KIF20A expression between PAAD (blue) and normal tissue (grey); (C) CCNB2 expression between PAAD (blue) and normal tissue (grey); (D) NCAPH expression between PAAD (blue) and normal tissue (grey). *, P<0.05. PAAD, pancreatic adenocarcinoma; TPX2, targeting protein for Xenopus kinesin-like protein 2; KIF20A, kinesin family member 20A; CCNB2, cyclin B2; NCAPH, non-structural maintenance of chromosome condensin I complex subunit H; TPM, transcript count per million.

Gene expression and disease progression

The survival analysis of all genes showed better prognosis and higher OS in patients with low levels of gene expression: TPX2 [OS (HR) =3.24; 95% CI: 1.56–3.6; log rank P value <0.000001], KIF20A [OS (HR) =2.23, 95% CI: 1.45–3.43; log rank P value <0.0001], CCNB2 [OS (HR) =2.54, 95% CI: 1.64–3.94: log rank P value <0.0001], and NCAPH [OS (HR) =2.34; 95% CI: 1.5–3.63; log rank P value <0.0001]. Kaplan-Meier plots for the survival of each gene are shown in Figure 4.

Figure 4 Comparison of genes’ expression by Kaplan-Meier survival curves for the OS in PAAD. High levels of expression in TPX2 gene were significantly associated with high hazard ratio and poor prognosis (HR: 3.24, P<0.000001). KIF20A was also associated with poor prognosis in patients with high levels of expression (HR: 2.23, P<0.0001). Better PAAD prognosis was seen in patients with low levels of expression of both CCNB2 and NCAPH genes (HR: 2.54, 2.34, P<0.0001). TPX2, targeting protein for Xenopus kinesin-like protein 2; MMP28, matrix metalloproteinase 28; PLA2G16, group XVI phospholipase A2 also commonly known as AdPLA is an enzyme that in humans is encoded by the PLA2G16; NCAPH, non-structural maintenance of chromosome condensin I complex subunit H; HR, hazard ratio; OS, overall survival; PAAD, pancreatic adenocarcinoma.

Prognostic ML classification model

The training set of each model comprised 276 patients (80%), and the test/validation set comprised 70 patients (20%). The classification model for the TPX2 gene predicted OS with a mean accuracy estimate of 83% and 95% CI: 0.75–0.89, and a mean 10-fold cross-validation score of 0.51. Whereas for the KIF20A gene, the model performed with a mean accuracy of 68% and 95% CI: 0.62–0.74, and a mean 10-fold cross-validation score of 0.41. For the CCNB2 gene, the model was able to predict OS with a mean accuracy of 79%, 95% CI: 0.75–0.85, and a mean 10-fold cross-validation score of 0.56. While the NCAPH classification model predicted the OS with a mean accuracy of 81%, 95% CI: 0.76–0.87, and a mean 10-fold cross-validation score of 0.56. All models’ evaluation scores are presented in Table 1. The concordance index (C-index) of the CPH model was 0.64, logrank test P value <0.0001. The HR for the univariate analysis showed increased risk and worse prognosis (P value <0.001), when adjusting for the multivariate analysis, KIF20A and TPX2 genes showed increased hazard risk (P value <0.05), while the NCAPH gene showed decreased hazard risk (P value <0.05). The CCNB2 gene did not show significant prediction in the multivariate analysis. Table 2 shows the HR and P values for the univariate and multivariate analysis.

Table 1

Machine learning model evaluation scores

Model Mean bootstrap estimate 95% CI 10-fold cross validation
TPX2 0.83 0.75–0.89 0.51
KIF20A 0.68 0.62–0.74 0.41
CCNB2 0.79 0.75–0.85 0.56
NCAPH 0.81 0.76–0.87 0.56
Combined 0.86 0.79–0.92 0.58

CI, confidence interval; TPX2, targeting protein for Xenopus kinesin-like protein 2; KIF20A, kinesin family member 20A; CCNB2, cyclin B2; NCAPH, non-structural maintenance of chromosome condensin I complex subunit H.

Table 2

Univariate and multivariate analysis of cox proportional hazard model

Variables Mean (SD) Univariate Multivariate
HR (95% CI) P value HR (95% CI) P value
KIF20A 0.1 (0.9) 1.89 (1.50–2.39) <0.001* 1.68 (1.13–2.51) 0.010*
TPX2 0.0 (0.9) 1.77 (1.45–2.16) <0.001* 1.02 (0.65–1.59) 0.012*
NCAPH 0.1 (0.9) 1.56 (1.29–1.87) <0.001* 0.63 (0.40–0.98) 0.039*
CCNB2 0.1 (0.9) 1.66 (1.36–2.02) <0.001* 1.86 (1.15–3.02) 0.938

*, P value <0.05. SD, standard deviation; HR, hazard ratio; CI, confidence interval; TPX2, targeting protein for Xenopus kinesin-like protein 2; KIF20A, kinesin family member 20A; CCNB2, cyclin B2; NCAPH, non-structural maintenance of chromosome condensin I complex subunit H.


PAAD is the most common type of pancreatic cancer accounting for 90% of the cases and is associated with a very poor prognosis and less than 9% 5-year survival. Patients with PAAD are diagnosed in very late stages, presenting with advanced and metastatic transformation to other sites (24). Therefore, in this study we aimed to identify survival-related genetic biomarkers that are significantly associated with PAAD progression and showed upregulation in pancreatic tissue compared to normal tissue. We also provided an ML-based prognostic tool, which predicts the OS based on the mRNA sequence expression of the identified genetic biomarkers, hence, improving PAAD prognosis and diagnosis.

The TPX2 gene is a microtubule-associated gene that plays an important role in mitotic spindle formation and chromosomal segregation (25). The PPI network analysis showed significant enrichment of this gene in mitotic biological processes and a kinase molecular function. Differential gene expression analysis revealed that it was significantly upregulated in PAAD, which is associated with high pancreatic tissue proliferation. This gene has been shown to activate the Aurora A kinase activity by arresting it in the active form (26). High levels of expression of this gene were significantly associated with a poorer prognosis in PAAD. A cell line study by Warner et al. (27) revealed that the knockdown of this gene was associated with increased apoptosis in pancreatic tissue, and the effect of its inhibition on the cytotoxicity of taxanes in pancreatic tissue resulted in mitotic arrest and decreased cell viability. Thus, these results indicate that this gene can be used as a target for the development of anti-mitotic drugs for PAAD.

Another genetic biomarker that has been associated with mitotic cellular processes is the KIF20A gene from the kinesin family. This gene showed significant overexpression in PAAD compared to normal tissue, and it was also associated with patients’ prognosis. It has also been shown to act as a carcinogen associated with poor prognosis in other cancer types, including medulloblastoma (28), gastric cancer (29), and hepatocellular carcinoma (30). In a phase I trial of using immunotherapy KIF20A-derived peptide vaccination combined with gemcitabine revealed that KIF20A peptide-vaccine induced T-cell responses at high rates, and patients achieved stable disease with no severe adverse events (31). This implies the potential efficacy of targeting mitotic-related oncogenes in PAAD for better prognosis.

The CCNB2 is a member of the cyclin family that is required for cell cycle regulation in the G2/M phase of mitosis. Expression analysis showed significant upregulation of CCNB2 in PAAD compared to normal tissue, in addition to its association with poor prognosis in PAAD patients with high levels of expression. An in vitro study assessed the possible effect of the depletion of CCNB2 on tumor cells’ proliferation, which revealed suppression of cellular migration and growth, thus emphasizing its role in promoting cellular migration (32). The overexpression of CCNB2 along with the Aurora kinase A gene has also been shown to cause atypical mitosis, causing TP53 somatic mutations in adrenocortical carcinoma (33). Promoter hypomethylation of this gene was observed to cause higher expression in tumor tissue of hepatocellular carcinoma, and positively correlated with immunosuppressive cells infiltration, marking it as a putative prognostic marker and introducing the combination of immunotherapy and inhibitors of this gene to better prognosis (34).

The NCAPH gene is a member of the Barr gene family which acts as a regulatory subunit of the condensin complex that is required for chromosomal condensation. This gene has been associated with increased cell proliferation and inhibition of apoptosis in bladder cancer, by acting on the MEK/ERK signaling pathway (35). In this study, our findings revealed an overexpression of the NCAPH gene in PAAD, and a prognostic correlation with its level of expression, in which people with high levels of expression presented with a poorer prognosis than people with low levels of expression. In addition, the PPI analysis also showed significant enrichments in biological processes associated with chromosomal condensation. The knockdown of NCAPH in the pancreatic cell in vitro caused G2/M phase arrest and increased apoptosis, whereas another gene from this family (NCAPG) arrested hepatocellular carcinoma cells in the S phase. All the identified genes were significantly associated with mitotic regulation, suggesting a potential mechanism of PAAD pathogenesis.

All the ML classification models performed with great accuracy and high precision estimates in predicting the OS in PAAD patients based on mRNA expression of the identified genes, which provides a reliable prognostic tool for PAAD and imply the replicability and reproducibility of this model in PAAD. Instead of using one decision tree, the RFC model includes multiple decision trees and uses averaging to avoid overfitting and improve accurate predictions. All models underwent robust and unbiased multiple evaluation approaches, to validate their application in clinical practice for an early diagnosis of PAAD. Each model was cross-validated with 10-fold iterations, this method prevents model overfitting, and tests how it can be accurately used in practice and on independent datasets, by training on multiple train-test sets. All models showed narrow confidence interval accuracies implying a high precision of our results and high confidence in reproducibility for clinical practice.

Our models were based on novel genetic biomarkers, that have shown significant association with cell cycle regulation and survival in PAAD and overexpression in pancreatic cancer tissue. The classification models were trained based on the expression scores of each gene as feature variables using multiple decision trees to accurately predict the prognostic status of PAAD samples across multiple random subsets of the data that it has not been trained on. Hence, our results present a rigorous linkage between novel genomic expression and a predictive model to improve the prognostic value in PAAD.

In this study, we provided reliable findings in the favor of several strengths. First, we identified four genes that were significantly upregulated in PAAD and significantly associated with PAAD survival, and cell cycle regulation. Thus, these findings can facilitate the development of targeted therapy providing a better prognosis for PAAD. Second, we designed a predictive ML model using the RFC ensemble which is based on multiple decision trees, this presents with more accurate and stable performance and prevents overfitting. Third, we evaluated each model using robust evaluation metrics such as 10-fold cross-validation which tests the model on different subsets of the data in each iteration, and this significantly reduces bias and variance (36). The model’s accuracy was also estimated using 95% CI, which reflects the precision of our model and its reproducibility in practice. Despite the strong points in our study, these findings should be interpreted with caution in the context of several limitations. First, the PAAD dataset from TCGA contained a low number of samples with gene expression, and this would affect the model’s performance resulting in lower accuracy than in larger samples. Second, we could not train the model on regression ensembles as it requires a very large amount of data to provide good accuracy and reliable results. Finally, limited data availability of clinical variables and treatment modalities of each patient did not allow training the models on these variables which may influence the predictions.


In essence, we conducted a bioinformatics analysis to identify cell cycle hub genes and further validated their expression in PAAD tissue from the TCGA database. These genes included TPX2, CCNB2, KIF20A, and NCAPH, which were significantly upregulated in PAAD, and associated with poor prognosis. We also introduced and comprehensively evaluated a prognostic ML model that predicted PAAD patients’ survival based on the expression of these genes which performed with good accuracy. Our study is the first to identify genetic biomarkers associated with cell-cycle regulation in PAAD and integrate them with ML. These findings can guide the identification of these genes as prognostic signatures to aid in the development of anti-mitotic therapy targeting these hub genes.


Funding: None.


Peer Review File: Available at https://apc.amegroups.com/article/view/10.21037/apc-22-6/prf

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://apc.amegroups.com/article/view/10.21037/apc-22-6/coif). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013).

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
